Home > Mixing Emulsifying SeriesTRL-H Shear pump
TRL-H Shear pump
 How It Works
In a wide range of products from simple to demanding applications to blend, emulsify, disperse, dissolve and homogenize, TRL-H series with unique impellervane, inducer design enablles quick dissolution and hydration of stablizers, gums, powders, sugars and any fluids requiring sensitive shearing.

 Structural features
The TRL-H Series blenders are ideally suitable for various applications of skimmimg milk,   formulating, toppings, puddings, making sauces, mixing icecream, blending sugar and dressing salad. Also, TRL-H Series are designed to blend, emulsify, disperse, dissolve and homogenize. Supremely efficient and rapid in operation to shorten processing time by up to 90% when compared to conventional paddles or agitators due to configuring impeller-vane design in line with fluid shear rate. All contact parts are AISI316 stainless steel for pump and funnel. CIP's ability being suitable for hygienic and clean process reduces downtime consuming hand cleaning and labor intanse of man hours besides the risk of equipment damage from COP. Highest capacity and heaviest duty with compact size being accomplished with state-of-art technology and know-how. The shear blender can deliver capacities up to 80m3/hr.

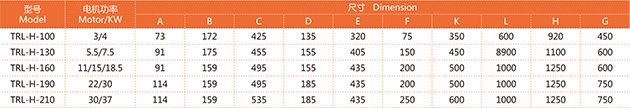

Outline Dimension

 Application Features

Enormous savings in time

Suitable for extremely varied batch sizes

Low noise, stable operation

For applications where low stress on products

is important

Easy to clean:CIP/SIP or manual

Simple maintenance

Different sealing materials
