Pipeline High Shear Dispersing Emulsifier
How It Works
High shear mixers dispersing emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other.The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect,therefore,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing,centrifugal force,pressing,liquid fraction,clashing,tearing and rush water.The dissolvable solid,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made.
Structural features
1.Stator 2.Screw cap 3.Flexible gasket 4.Flat gasket 5.Rotor 6.Pump cavity 7. Mechanical seal (stationary ring) 8.Mechanical seal (moving ring) 9.Mechanical seal (stationary ring) 10.Seal cool seat 11.Pump seat 12.Pin 13.Pump shaft 14.Motor 15.Support 16.Frame
Rough teeth: beat, shatter, shear, dissolve, rough disperse |
Middle teeth: disperse, refine, solutize, emulsify |
Fine teeth: superfine disperse, emulsify, homogenize, pulpify |
Specifications

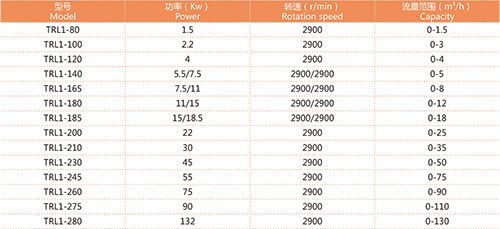

TRL1 One-stage Pipeline High Shear Dispersing Emulsifier

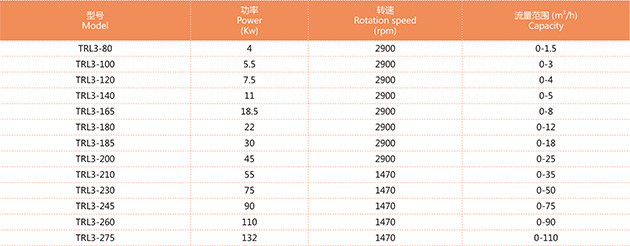

TRL3 Three-stage Pipeline High Shear Dispersing Emulsifier
TRL3 Three-stage Pipeline High Shear Dispersing Emulsifier
Application Features
High shear mixers dispersing emulsifier is applied in many fields......
